AVTECH : AVC 787


DVR Recoders
AVC787, 16CH MPEG4 real time Digital Video Recorder. It includes features such as MPEG4 compression format, superior real time performance with 480 IPS (NTSC) / 400 IPS (PAL), longer recording time via independent disk array, USB backup function, advance motion trigger recording, and pentaplex functions. All the benefits of this product are created to secure your life every time and everywhere.
Benefits
MPEG4 Technology :
  • Compression format providing crystal clear images with real time performance.


Multiplex :
  • Allows live display, record, playback, backup and network operation at the same time.


Long-Recording Hours :
  • 500GB can record more than 4 days. (16CH, Frame Best Quality, 120IPS)
  • Supports Independent Disk Array (optional) connection to have more storage capacity


Backup Function :
  • Supports file backup with USB flash drives and net work remote recording & backup


Remote Surveillance :
  • Remote surveillance with the licensed software AP and IE browser
  • Web surveillance supports 5 users simultaneously


Intelligent Motion Trigger Recording :
  • With advanced settings for motion detection, scheduled motion detection recording (4 different adjustable factors for the motion detection sensitivity) and convenient search function, customized security environment is achieved.
  • Alarm triggered recording will send alerts with images to the designated e-mails and FTP address
  • Supports pre-alarm recording (8MB)


Covert Recording :
  • A mask replaces the live image with a blank screen, and the monitor shows nothing but recording is still on.


A/V Support :
  • Supports 1 audio-in, 1 audio-out to record sounds
  • Supports VGA converter (optional)


General :
  • Support multi-language OSD
  • System auto recovery after power reconnected
  • IR remote control for the system and PTZ cameras through RS-485
  • Support daylight saving function
  • Support manual / timer / motion / alarm / remote recording functions
  • Watermark function ensures authentication of recorded images
  • Support TCP/IP, PPPoE, DHCP and DDNS network connection


16CH MPEG4 Network DVR
Enlarge Image
Specifications
Video System
:
NTSC / PAL (switchable)
Video Compression Format
:
MPEG4
Video Input
:
Composite video signal 1 Vp-p 75Ω BNC
Video Output
:
Main Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
Call Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
Video Loop Out
:
Composite video signal 1 Vp-p 75Ω BNC
Maximum Recording Rate
:
Frame: 720 × 480 pixels with 120 IPS / 720 × 576 pixels with 100 IPS
CIF: 352 × 240 pixels with 480 IPS / 352 × 288 pixels with 400 IPS
Adjustable Recording Speed
:
Frame: 120, 60, 30, 15 IPS / 100, 50, 25, 12 IPS
CIF: 480, 240, 120, 60 IPS / 400, 200, 100, 50 IPS
Image Quality Setting
:
Best, High, Normal, and Basic
Hard Disk Storage
:
IDE type, ATA66, supported HDD 1, support each HDD capacity over 400GB
HDD Quick Cleaning
:
Quick clean up the “index system” of the recorded files. 250GB under 2 seconds
Recording Mode
:
Manual / Timer / Motion / Alarm / Remote
Watermark
:
Yes
Refresh Rate
:
480 IPS for NTSC / 400 IPS for PAL
Multiplex Operation
:
Live display, record, playback, backup and network
Audio I/O
:
4 audio inputs, 2 audio outputs (Mono)
Motion Detection Area
:
16 × 12 grids per camera for all channels
Motion Detect Sensitivity
:
4 adjustable variables with precise calculation for motion detection
Pre-alarm Recording
:
Yes (8MB)
USB Interface
:
Support USB 1.1/ 2.0 flash drives (front panel 1, back panel 1)
Backup Device
:
USB1.1 / 2.0 flash drives, DVD-WRITER backup and network remote backup
Web Transmitting / Compression Format
:
Motion JPEG
Ethernet
:
10/100 Base-T. Support remote control and live view via Ethernet
Web Interface
:
Support licensed software AP, and IE browser
Remote Alarm Notification
:
E-mail images, and images uploading to FTP site’s specific account
Network Protocol
:
TCP/IP, PPPoE, DHCP and DDNS
Remote Control
:
Remotely control DVR and PTZ cameras via IR transmitter (RS-485)
PTZ control
:
Support PELCO-D protocol
Dwell Time (Sequential Channel Switch)
:
Programmable with adjustable dwell time
Alarm I/O
:
16 inputs, 1 output
Picture Zoom
:
Support 2X digital zoom function
Key Lock
:
Yes
Video Loss Detection
:
Yes
Camera Title
:
Support up to 6 letters
Video Adjustable
:
Hue/Color/Contrast/ Brightness
Date Display Format
:
YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
Daylight Saving
:
Yes
Power Source
:
DC 19V
Power Consumption
:
＜64 W
Operating Temperature
:
10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)
:
432mm (W) × 90mm (H) × 326mm (D)
System Recovery
:
System auto recovery after power reconnected
Optional Peripheral
:
System auto recovery after power reconnected

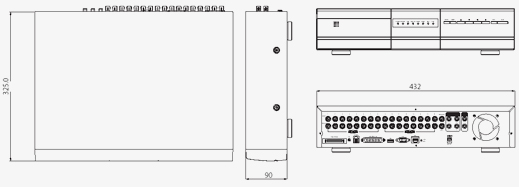

Dimensions
