AVTECH : AVD717D


DVR Recoders
Benefits
MPEG4 Technology :
  • Compression format providing crystal clear images with real time performance


Multiplex :
  • Allow live display, record, playback, backup, and network operations at the same time


Remote Independent Operation :
  • Allow you to individually see the live view of a single channel without changing the display setting from AP side


Huge Storage Capacity :
  • Support up to 3 HDD accommodation, or 2 HDD accommodation + independent disk array


Free Upgrade to Advanced Functions :
  • Allow you to upgrade DVR functions without any charges


Long-Recording Hours :
  • 500GB can record more than 52 days (16CH, CIF Normal Quality, 60IPS)


Backup Function :
  • Support USB flash drive, network & DVD writer backup


Remote Surveillance :
  • Support remote surveillance up to 5 users simultaneously with licensed software AP and IE browser


Intelligent Motion Trigger Recording :
  • R.E.T.R. (Remote Event Trigger Recording)
  • With the advanced functions of motion detection, scheduled motion detection recording (4 different adjustable factors for motion detection sensitivity) and quick search, customized security environments are achieved
  • Alarm trigger recording will send alerts with images to designated e-mails and the FTP address
  • Support pre-alarm recording (8MB)


Covert Recording :
  • A mask replaces the live image with a blank screen and the monitor shows nothing, but the recording is still on


A/V Support :
  • Support 4 audio-in, 2 audio-out to record sounds
  • Support VGA output to monitor (optional)


General :
  • Support multi-language OSD
  • Support IR remote control
  • System auto recovery after power reconnected
  • Support IR remote control, PTZ camera operations through RS-485, and PTZ Hot Point function
  • Support daylight saving function
  • Support manual / timer / motion / alarm / network recording
  • Ensure the authentication of recorded images with Watermark function
  • Support TCP/IP, PPPoE, DHCP and DDNS network connection

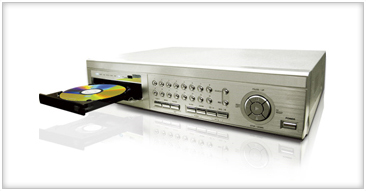

16CH MPEG4 Network DVR
Enlarge Image
Specifications
Video System
:
NTSC / PAL (switchable)
Video Compression Format
:
MPEG4
Video Input
:
16 Channels
Video Output
:
Main Monitor Output: Composite video signal 1 Vp-p 75Ω BNC;
Call Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
Maximum Recording Rate (Frame)
:
720×480 pixels with 120 IPS / 720×576 pixels with 100 IPS
Maximum Recording Rate (CIF)
:
352×240 pixels with 480 IPS / 352×288 pixels with 400 IPS
Adjustable Recording Speed (Frame)
:
120, 60, 30, 15 IPS / 100, 50, 25, 12 IPS
Adjustable Recording Speed (CIF)
:
480, 240, 120, 60 IPS / 400, 200, 100, 50 IPS
Multilingual OSD
:
YES
Image Quality Setting
:
Best, High, Normal, and Basic
Hard Disk Storage
:
Accommodate 3 HDDs, or 2 HDDs plus independent disk array
HDDs and disk arrays are optional.
HDD Quick Cleaning
:
Quick clean up the “index system” of the recorded files (500GB under 2 seconds)
Recording Mode
:
Manual / Timer / Motion / Alarm / Remote
Watermark
:
YES
Refresh Rate
:
480 IPS for NTSC / 400 IPS for PAL
Multiplex Operation
:
Pentaplex: live display, record, playback, backup and network
Independent Remote Operation
:
YES
Audio I/O
:
4 audio inputs, 2 audio outputs (Mono)
Remote Event Trigger Recording
:
YES
Motion Detection Area
:
16 × 12 grids per camera for all channels
Motion Detection Sensitivity
:
4 adjustable variables with precise calculation for motion detection
Pre-alarm Recording
:
Yes (8 MB)

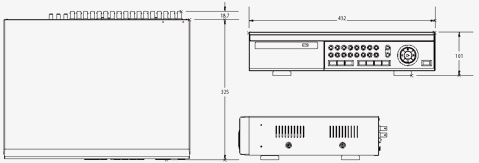

Dimensions
