GANZ, CBC : DR8N


The GANZ® Digi-Master Series is a powerful line of Digital Video Recorders designed to provide state-of-the art features, exceptional recorded image quality and ease of peration. With up to 1.5 TB of internal storage capacity, this series provides up to 60 days recording time at 704 x 480 resolution. MPEG-4 compression saves high-quality images with maller file sizes and allows more efficient transmission over Ethernet. USB-2 ports and optional CD-RW or DVD drive assure quick and easy archiving.
Benefits
  • 8/16 ch video and 4 ch audio recording
  • 120 images per second recording speed
  • True TRIPLEX Operation
  • Up to 704 x 480 (4 CIF/D1) resolution
  • Optimized MPEG-4 compression
  • 10/100 Base Network Connection allows remote viewing playback and PTZ control
  • USB-2 Port for quick
  • downloading to a thumb drive
  • Internal DVD/CD-RW drive for data backup (optional)
  • PTZ control (drivers for most popular models included)
  • DDNS support for use with dynamic IP addresses
  • Server-grade continuous duty hard disk drives optimize performance and improve reliability

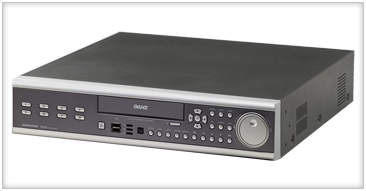

8CH MPEG4 Network DVR
Enlarge Image
Specifications
Video Standard
:
NTSC or PAL (switchable)
Monitor Display
:
Real Time 30FPS (NTSC) Per Camera
Operating System
:
Embedded Linux
Record Scheduling
:
Daily, Weekly, adjustable to specific hour per channel
Record Mode
:
Continuous, Motion, Event, Panic
Remote Access
:
TCP/IP, View, Search, Recording and Control (Client Software or browser)
Playback
:
Up to 16 channel simultaneous playback
Pre/Post Alarm
:
5 Secs (Pre), 3 Mins (Post), programmable per camera
VGA Output
:
Standard (for monitors with multi-sync function only) (1024 x 768, 60Hz)
Motion Detection
:
16 x 16 Grid, Sensitivity Levels: 10
DVR Operation
:
Triplex
Video Inputs
:
16 Ch - 16 Channel: 16 inputs, 1Vp-p, CVBS, 75 ohms, BNC
8 Ch - 8 Channel: 8 inputs, 1Vp-p, CVBS, 75 ohms, BNC,
Video Outputs
:
16 Ch - 16 looping outputs
8 Ch - 8 looping outputs
Monitor Outputs
:
1 x BNC Composite Video, S-VHS and VGA
Spot Output
:
16 Ch - 4 x 1Vp-p, CVBS, 75 ohms, BNC
8 Ch - 2 x 1Vp-p, CVBS, 75 ohms, BNC
Audio Inputs
:
4 x line-in, RCA
Audio Output
:
1 x line-out, RCA
Screen Options
:
16 Ch - 1, 4, 6, 8, 9, 13, 16
8 Ch - 1, 4, 6, 8
Resolution
:
352x240, 704x240, 704x480 (NTSC)
Compression Standard
:
MPEG-4
Recording Speed (ips)
:
352x240: 120 ips, 704x240: 60 ips, 704x480: 30 ips
Image File Size
:
3-5 Kbyte (352x240), 5-10 Kbyte (704x240), 6-16 Kbyte (704x480)
Hard Disk Capacity
:
3 x HDD, No limit on HDD Size
Back-up Storage
:
USB Default (USB Memory Stick included), DVD/CD-RW (option)
Alarm Inputs
:
16 Ch - 16 x TTL, programmable as NC/NO
8 Ch - 8 x TTL, programmable as NC/NO
Alarm Outputs
:
16 Ch - 16 x TTL
8 Ch - 8 x TTL
Back-up File Formats
:
AVI, JPG, BMP
Ethernet Interface
:
10/100 Base-TX, RJ-45 connection
Network Control
:
Live View, Recording, Set-up, Playback, Search, Archiving
PTZ Control
:
via RS-485 Interface
PTZ Operation
:
Pan, Tilt, Zoom, Focus, Iris, Preset and Tour
DayLight Saving
:
Included
Time Sync
:
Automatic via NTP
Software Updates
:
via USB memory stick or Network (FTP)
Security
:
Multi-Level access control via user password
Remote Alarm Notification
:
via SMTP E-mail
Supply Voltage
:
100VAC - 240VAC, 60/50 Hz
Operating Temperature
:
41°- 104° Fahrenheit
Dimensions
:
16.9" X 3.5" X 18.1" (WXHXD)
Rack Mount Size
:
19" 2U rack mountable (rack mount ears optional)
Weight
:
16.1 pounds
