Accessories.: 3G01

Benefits
Functioned as a mobile phone, this device will actively call out to the specified 3G phone number with the live video transmitted when any motion is detected and an alarm is triggered.

  • Supports WCDMA 3G system
  • Supports tri-band EGSM850 / GSM1900 / GSM2100
  • Supports audio transmission
  • Video transmission time from 3 to 10 seconds
  • 3G Active Call-Out
  • Actively calls out to the specified 3G phone number when an alarm is triggered.
  • MPEG4 video transimission format
  • Max Frame rate up to 15 fPS
  • Supports pre-alarm recording (15 seconds)
  • Supports SMS notification function
  • Built-in watch dog

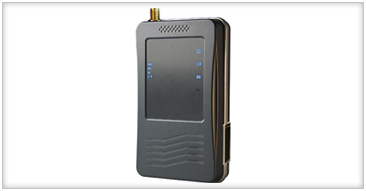

Accesories 3G01
Enlarge Image
Specifications
Model
:
3G01
Network :
3G System
:
WCDMA
Viewer
:
Compatible with any mobile phone which supports the video call function. No need to install any other software.
Resolution
:
176 X 144 (QCIF)
Frame Rate
:
MAX 15fps
Notification
:
SMS
External I/O Port
:
Audio 1 / Video 1
Security
:
Registered phone number
Audio
:
YES
DCC Support
:
YES
3G Active Call Out Support
:
YES
Pre-alarm Recording
:
YES (15 seconds)
Phone Number Filtering
:
YES
System :
:
Watch Dog
:
YES
Battery Capacity
:
3.7V, 1350mAh
Power Source
:
DC12V 1A
Power Consumption
:
4.6W
Operating Temperature
:
0-35 ℃
Dimensions (mm)
:
128(L) x 76(W) x 25(H)
Weight (g)
:
180
