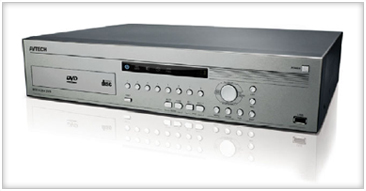

AVTECH : AVC 796 & AVC 796D

Benefits
8CH Real-Time H.264 Network DVR
H.264 Video Compression Technology
  • Highly improves video quality for live, recording, and network
  • Recording file size is minimized for longest recording time
  • Lower bit rate required for fastest network transfer

Long Recording Time
  • The recording time is greatly extended with the smart recording design that only the motion-triggered channel will be recorded, and the video loss channel won't be recorded

VGA Output
  • Built-in VGA interface
  • Output resolution up to 1600 x 1200

Multiplex Operation
  • Allows users to operate live display / playback, recording, backup, and network simultaneously

Audio Recording
  • Supports four audio inputs and two audio outputs

Quick Search
  • Supports time search, event (motion-triggered recording) search and alarm search

Easy Backup
  • Supports USB flash drive, DVD writer (optional), and network for easy backup

Easy Playback on PC
  • All the backup files can be played directly on your computer by Windows Media Player, and there is no need to install any software

User-friendly OSD
  • Graphical & multi-language OSD makes operation easier and more user-friendly

Remote Independent Operation
  • Changing of live view on the remote side is independent from the local site

Central Management System
  • Supports Central Management System function for remote surveillance to monitor up to 16 different IP addresses easily

Low Cost Network Setup
  • Supports dynamic IP for users with limited budget

Easy and Free Upgrade
  • Releases new firmware for free upgrade to advanced functions, and the upgrade can be completed via USB flash drive or network

Others
  • Supports Frame / Field / CIF resolution for recording
  • Supports SATA HDDs
  • Supports Pelco-D & Pelco-P for speed dome control
  • Supports day-light saving
  • Supports covert recording
  • Supports IR remote control
  • Supports auto recovery after power failure
  • Supports watch dog function after network disconnection

H.264 Compression DVMR
Buying a 'CCTV' System does not have to be confusing or expensive! Our range of 'CCTV Cameras', DVR's and IP Cameras offer.
Specifications
Video System
:
NTSC / PAL (auto detection)
Video Compression Format
:
H.264
Video Input
:
8 Channels (Composite video signal 1 Vp-p 75Ω BNC)
Video Loop Output
:
8 Channels (Composite video signal 1 Vp-p 75Ω BNC)
Video Output (BNC)
:
Main Monitor : For stable display
Call Monitor : For sequence display
Video Output (VGA)
:
Built-in VGA interface for LCD monitor (output resolution up to 1600 x 1200)
Audio Input
:
4 Channels (Mono)
Audio Output
:
2 Channel (Mono)
Multiplex Operating
:
Supports live display, recording, playback, backup, and network simultaneously
Maximum Recording Rate (FRAME)
:
60 IPS @ 704×480 / 50 IPS @ 704×576
Maximum Recording Rate (FIELD)
:
120 IPS @ 704×240 / 100 IPS @ 704×288
Maximum Recording Rate (CIF)
:
240 IPS @ 360×240 / 200 IPS @ 360×288
Recording Mode
:
Manual / Timer / Motion / Alarm / Remote
Recording Quality Options
:
Super Best, Best, High & Normal
Pre-alarm Recording
:
YES (8 MB)
HDD Type
:
SATA
HDD Type
:
SATA
HDD Storage**
:
Up to two HDDs
Quick Search
:
Time / Motion / Alarm search mode
USB Flash Drive Backup
:
YES
DVD Writer Backup
:
NO / YES
Playback on PC
:
Windows Media Player compatible
Network Transfer Format
:
H.264
Ethernet
:
10/100 Base-T
Network Protocol
:
TCP/IP, PPPOE, DHCP and DDNS (Dynamic IP)
Network Protocol
:
TCP/IP, PPPOE, DHCP and DDNS (Dynamic IP)
Network Surveillance Interface
:
Licensed software "Video Viewer" / Internet Explorer or Mozilla Firefox web browser / QuickTime player
Remote Independent Operation
:
Yes
Network Alarm Notification
:
E-mail and FTP server
CMS (Central Management System)
:
YES (Maximum: 16 different IP addresses)
Operating System for Network Function
:
Windows Vista / XP / 2000; Apple MAC
IR Remote Control
:
YES
Multilingual OSD
:
YES
Motion Detection Area
:
16 × 12 grids per channel
Motion Detection Sensitivity
:
Four adjustable parameters for accurate detection
PTZ Camera Control
:
YES (Pelco-D & Pelco-P)
External Alarm
:
8 inputs, 1 output
Picture Zoom
:
2X digital zoom
Key Lock (Password Protection)
:
YES
Video Loss Detection
:
YES
Camera Title
:
Up to 6 letters
Video Adjustable
:
Hue / Color / Contrast / Brightness
Date Display Format
:
YY/MM/DD, DD/MM/YY, MM/DD/YY
Daylight Saving
:
YES
Power Source (±10%)
:
DC 19V
Power Consumption (±10%)
:
< 64 W
Operating Temperature
:
10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)***
:
432(W) × 90(H) × 326(D)
System Recovery
:
System auto recovery after power failure
Optional Peripherals
:
Keyboard controller

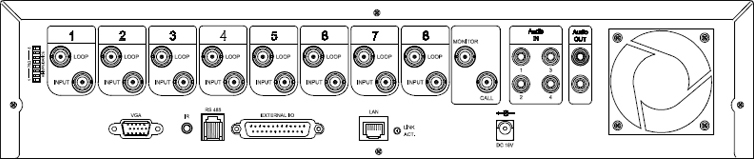

Dimensions
