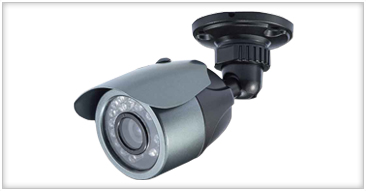

YOKO : RYK 2B49L2

Benefits
  • Built-in 24 Pieces IR-LED
  • Effective range up to 20M
  • Dual Window Structure to Prevent Reflection and Diffusion of Infrared Light
  • 3-Axis Concealed Cable Bracket
  • DC Voltage, low power consumption
  • Waterproofing criterion:IP68
Infra Red Cameras
Enlarge Image
Specifications
Image Device
:
1/3" Color CCD (Sony Chipset )
Picture Elements
:
NTSC:510x492, PAL:500x582
Resolution
:
380 TVL
Min. Illumintion
:
0.2 Lux / F 2.0
S/N Ratio
:
More than 48dB
Electronic Shutter
:
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma
:
0.45
Lens Furnished
:
Board Lens 3.6mm / F2.0 (option:4.3/6/8/12mm)
White Balance
:
Auto
Gain Control
:
Auto
Sync. System
:
Internal
Video Output
:
1 Vp-p / 75 Ohms
Infrared Luminary
:
24 pieces IR-LED
Wavelength
:
850 nm
Illuminate Distance
:
20 M
Waterproofing Criterion
:
IP 68
Power Supply
:
DC12V±10%
Power Consumption
:
IR On:360mA max, IR Off:140mA max
Operating Temp.
:
-10°C ~ 50°C

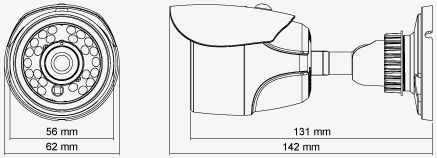

Dimensions
