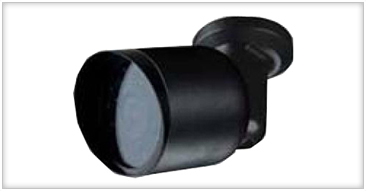

AVTECH : KPC 136B


1/3" Color IR Camera
This camera contains day and night feature, build-in IR LED and IP67 standard approved waterproof outdoor housing. Besides, it is very easy to install
Benefits
  • Cable management to hide the cable in the bracket for cable damage
  • High sensitivity in the dark environment, 0.4Lux / F2.0, 0Lux (IR ON)
  • Day and night features for 24-hour surveillance
  • Excellent image quality
  • IR LED effective range reaches up to 15 meters
  • IP67 standard approved outdoor housing
Infra-red Camera
Best Infra-red Camera in GujaratBest Infra-red Camera in Gujarat
Enlarge Image
Specifications
Pick-up Element
:
1/3" HR color CCD image sensor
Number of Pixels
:
512(H) x 492(V) / 512(H) x 582(V)
Resolution
:
420 TVL
Minimum illumination
:
0.4Lux / F2.0, 0Lux (IR ON)
IR LED
:
21 units
Effective Range
:
Over 15 Meters
S/N Ratio
:
More than 48dB (AGC off)
Electronic Shutter
:
1/60(1/50) to 1/100,000 sec.
Lens
:
f3.6mm / F2.0
Lens Angal
:
92.6°
Iris Mode
:
AES
White Balance ATW
:
ATW
IP Rating
:
IP66
Video Output
:
1.0Vp-p composite, 75Ω
Power Source
:
DC12V±10%
Current Consumption
:
90mA (IR OFF), 280mA (IR ON)
Vandal Resistance
:
116.13(L) x 60(W) x 79.58(H)
