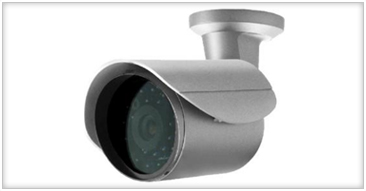

AVTECH : KPC 138B


21 LEDs IR Camera
Benefits
  • High sensitivity in the dark environment, 0.4Lux / F2.0, 0Lux (IR ON)
  • Day and night features for 24-hour surveillance
  • Excellent image quality
  • IR LED effective range reaches up to 15 meters
  • Cable management to hide the cable in the bracket for cable damage prevention
  • High sensitivity in the dark environment, 0.4Lux / F2.0, 0Lux (IR ON)
  • Day and night features for 24-hour surveillance
  • Excellent image quality
  • IR LED effective range reaches up to 15 meters
  • IP66 standard approved outdoor housing
Infra-red Camera
Enlarge Image
Specifications
Pick up Element
:
1/3"HR color CCD image sensor
Number of Pixel
:
512(H) x 492(V) / 512(H) x 582(V)
Resolution
:
420TVL
Min. Illumination
:
0.4Lux / F2.0, 0Lux (IR ON)
IR LED
:
21 units
Effective Range
:
Up to 15 Meters
S/N Ratio
:
More than 48dB (AGC off)
Electronic Shutter
:
1/60 (1/50) to 1/100,000 sec.
Lens
:
f3.6mm / F2.0
Lens Angle
:
92.6°
IRIS Mode
:
AES
White Balance
:
ATW
Video Output
:
1.0 Vp-p composite, 75Ω
Power Source (±10%)
:
DC12V
Current Consumption (±10%)
:
90mA (IR OFF), 280mA (IR ON)
