YOKO : RYK-2A47L


10M IR Camera
Benefits
  • Built-in 8 pieces IR-LED
  • Effective range up to 10M
  • Furnished with 3.6mm Board Lens and mounting bracket
  • Long life luminary with using special wavelength Infrared LED
  • DC voltage
  • Indoor use

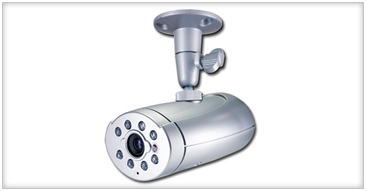

Infra-red Camera
Infra red CCTV CameraInfra red CCTV Camera
Enlarge Image
Specifications
Image Device
:
1/4" Color Sony Super HAD
Picture Ellement
:
NTSC:510x492, PAL:500x582
Resolution
:
330 TVL
Minimum illumination
:
0.5 Lux / F2.0 (Day), 0 Lux (IR On)
S/N Ratio
:
More than 48dB
Electronic Shutter
:
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma
:
0.45
Lens Furnished
:
Board Lens 3.6mm / F2.0
White Balance
:
Auto
Gain Control
:
Auto
Sync. System
:
Internal
Video Output
:
1/Vp-P / 75 Ohms
Audio Output
:
2 Vp-p / 50 Ohms (option)
Infrared Luminary
:
8 pieces IR-LED
Wavelength
:
850 nm
Illuminate Distance
:
10 M
Power Supply
:
DC12V±10%
Power Consumption
:
IR On: 250mA max. / IR Off: 125mA max. Operating Temp.
Operating Temp.
:
-10°C ~ 50°C

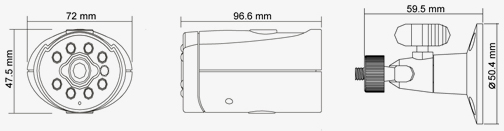

Dimensions
