YOKO : RYK-2Q49L2


20M /30M IR Camera
Benefits
  • Built-in 24 / 36 pieces IR-LED
  • Effective range up to 20M / 30M
  • Weatherproofing criterion IP 66
  • AC type (option)

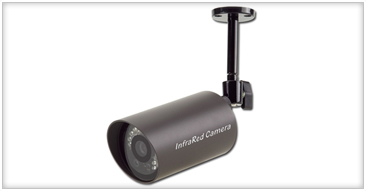

Infra-red Camera
Enlarge Image
Specifications
Image Device
:
1/3" Color Sony Super HAD
Picture Ellement
:
NTSC:510x492, PAL:500x582
Resolution
:
380 TVL
Min. Illumintion
:
0.2 Lux / F2.0 (Day),0 Lux (IR On)
S/N Ratio
:
More than 48dB
Electronic Shutter
:
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma
:
0.45
Lens Furnished
:
L2 model: Board Lens 3.6mm / F2.0 (option:4.3/6/8/12/16mm)
White Balance
:
Auto
Gain Control
:
Auto
Sync. System
:
Internal
Video Output
:
1/Vp-P / 75 Ohms
Infrared Luminary
:
L2 model: 24 pieces
Illuminate Distance
:
L2 model: 20M
Wavelength
:
850 nm
Waterproofing Criterion
:
IP 66
Power Supply
:
DC12V±10% (option: AC24V, AC110~240V)
Power Consumption
:
IR On: 567mA max. / IR Off: 125mA max.
Operating Temp.
:
-10℃ ~ 50℃

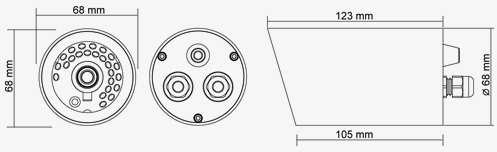

Dimensions
