YOKO : RYK-212HB


1/3" Color Sony Super HAD Camera
Benefits
  • SONY 1/3“ Super HAD CCD sensor
  • High sensitivity,
    low smear,
    high anti-blooming, & high S/N ratio
  • Powerful functions: Auto Electronic Shutter (AES), Auto Iris(AI),
    Auto Gain Control (AGC), Auto White Balance (AWB),
    Manual White Balance (MWB),
    Back Light Compensation (BLC) and Flickerless mode (FL)
  • Supports Auto Iris Lens: both Video-Drive & DC-Drive lens
  • Supports both C and CS mount lens
  • Built-in anti-alasing and IR-cut optical filter

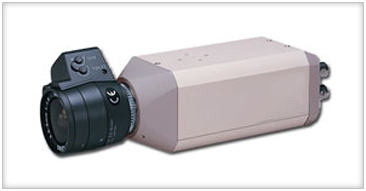

Regular C Mount Camera
Enlarge Image
Specifications
Image Device
:
1/3“ Color Sony Super HAD (Hi-Res.)
Picture Elements
:
NTSC: 768x494, PAL: 752x582
Resolution
:
470 TVL
Min. Illumination
:
0.2 Lux / F1.2
Color Turns Into B/W (Approx.)
:
Illumination < 1~3 Lux / F1.2>
S/N Ratio
:
More than 48dB
Electronics Shutter
:
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma
:
0.45
Iris Control
:
Video / DC Drive
Lens Mount
:
C / CS
White Balance
:
ATW (Auto) / MWB (Manual)
Gain Control
:
High / Low
Back Light Comp.
:
On / Off
Sync. System
:
Internal
Video Output
:
1 Vp-p / 75 Ohms
Power Supply
:
DC type : DC 12V±10
AC type : AC24V, AC100~240V
DC12V/AC24V Dual (option)
Power Consumption
:
2.8W max.
Operating Temp.
:
-10°C ~ 50°C
