YOKO : RYK-213F


Color CCD Camera
Benefits
  • Camera with 1/3-inch Sony super HAD CCD
  • sensor
  • High resolution: 550 TV lines
  • Furnished with lens and mounting bracket
  • Built-in Audio function
  • Improvement of color-rolling suppression
  • Minimum illumination: 0.2Lux/F1.2
  • Video/DC drive Iris control, C/CS lens mount
  • Support function: AES, AI, AWB, AGC, BLC
  • DC, AC or DC/AC Dual voltage
Regular C Mount Camera
Enlarge Image
Specifications
Image Device
:
1/3" Color Sony Super HAD (Hi-Res.)
Picture Ellement
:
NTSC:768x494, PAL:752x582
Resolution
:
550 TVL
Min. Illumination
:
0.2 Lux / F1.2
S/N Ratio
:
More than 48dB
Electronic Shutter
:
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Gamma
:
0.45
Iris Control
:
Video / DC Drive
Lens Mount
:
C / CS
White Balance
:
Auto
Gain Control
:
Auto
Back Light Comp.
:
On / Off
Sync. System
:
Internal
Video Output
:
1/Vp-P / 75 Ohms
Audio Output
:
2 Vp-p / 50 Ohms (option)
Power Supply
:
RYK-213F: DC12V±10%, RYK-413F: AC24V, AC110V, AC100~240V, DC12V/AC24V Dual (option)
Power Consumption
:
DC: 175mA max., AC: 3.2W max.
Operating Temp.
:
-10℃ ~ 50℃

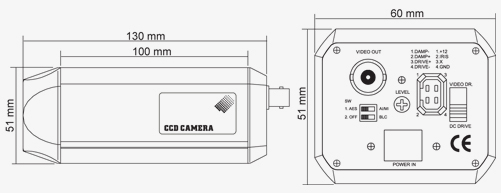

Dimensions
