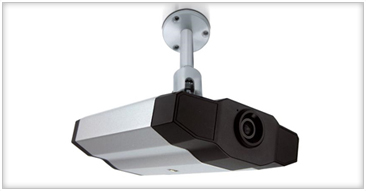

AVTECH : AVI IP201


Network Camera (cost-effective)
Benefits
  • Hybrid digital / analog video output
  • Motion detection
  • Low-latency video streaming for sharp and clear images
  • Complete IP surveillance system, such as the Central Management System (CMS) software,
    Network-Attached Storage (NAS),
    Network Video Recorder (NVR), etc.
Special Cameras / Hidden Camera
Enlarge Image
Specifications
LAN Port
:
YES
LAN Speed
:
10/100 Based-T Ethernet
Supported Protocols
:
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP,
ICMP, SMTP, FTP, HTTP, RTP, RTSP
Frame Rate
:
NTSC:30, PAL:25
Number of Online Users
:
10
Security
:
Multiple user access levels with password
Web management software
:
Yes (Control up to 16 network cameras simultaneously)
Video Compression
:
MPEG4 / MJPEG
Video Remote Control
:
YES
Video Adjustment
:
Brightness, Contrast, Saturation and Hue
Image Sensor
:
1/3.6" image sensor
Pixels
:
738(H) x 480(V)
Lens
:
f3.6
F-number
:
F2.0
Viewing Angle
:
80°
Shutter Speed
:
1/ 60 (1/50) to 1 / 100,000 sec.
Min Illumination
:
1 Lux / F2.0
Video Output
:
1.0 Vp-p. 75Ω
BLC
:
AUTO
White Balance
:
ATW
Remote Control
:
YES
Motion Detection
:
YES
Alarm and event Notification
:
Image upload over FTP and E-mail
General I/O
:
NO
Power
:
12VDC, 0.2A
Operating Temperature
:
0~40℃
Humidity
:
85%
Minimum Web Browsing Requirements
:
Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
256 MB RAM
AGP graphics card , Direct Draw, 32MB RAM
Windows XP, Windows 2000 Server, ME, 98, DirectX 9.0 or later
Internet Exploerer 6.x or later
Dimension (mm)
:
152.5 x 115.2 x 40.2 mm (6.00" x 4.54" x 1.58") (Dimensional tolerance: (± 5mm)
Shipping Weight
:
812 g (1.79 lbs) including mounting bracket and power supply
In/Out Door Use
:
Indoor
Dimensions
