YOKO : RYK-2C54

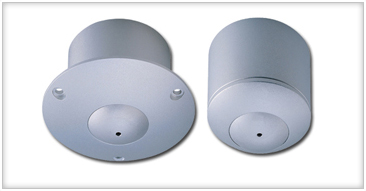

1/3" CL Mini Dome Camera
Benefits
  • Sony Super HAD CCD sensor
  • Built-in Cone Lens 3.7 mm
  • 380 TVL 0,4 Lux
  • 3,7 mm LensF 1.2
  • Pal:500 ( H ) x 582 ( V )
  • AES,AGC,AWB
  • Electronic Shutter
  • DC 12 V
  • In-ceiling or Surface installation application
  • Aluminum casing
Special Cameras / Hidden Camera
CCTV Hidden CameraCCTV Hidden Camera
Enlarge Image
Specifications
Image Device
:
1/3" Color Sony Super HAD
Picture Ellement
:
NTSC-510x492,PAL:500x582
Resolution
:
380 TVL
Min. Illumintion
:
0.5 Lux / F2.0
S/N Ratio
:
More than 48dB
Electronic Shutter
:
NTSC :1/60～1/100.000.PAL :1/50～1/110.000
Gamma
:
0.45
Lens Mount
:
Cone Lens 3.7mm / F2.0
White Balance
:
Auto
Gain Control
:
Auto
Sync System
:
Interal
Video Output
:
1/Vp-P / 75 Ohms
Audio Output
:
2/Vp-P / 50 Ohms (option)
Power Supply
:
DC 12V ±10%
Power Consumption
:
117mA max
Operating Temp.
:
-10°C ~ 50°C

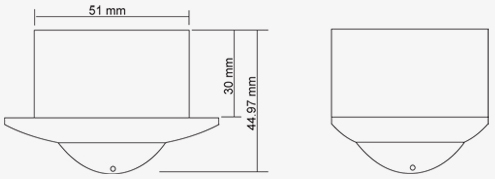

Dimensions
