YOKO : RYK-2E03/4A


Outdoor Speed Dome Camera
Benefits
  • 35x or 22x optical zoom, 16x digital zoom
  • Day & Night (option: IR-Cut fi lter Removable, ICR)
  • On Screen Display (OSD) set-up menu
  • 128 present points
  • Remote Control via RS-485 (by RYK-8330 control keyboard)
  • IP 66 for outdoor, built-in Heater & Fan
  • Wall / Pendant / Corner mount for choice

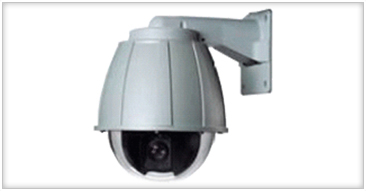

Speed Dome Camera
Enlarge Image
Specifications
Image Device
:
1/4” Color Sony EX-View HAD (Hi-Res.)
Picture Elements
:
NTSC:768x494,PAL:752x582
Resolution
:
470 TVL
Min. Illumination
:
0.1 Lux (Night / BW),0.5 Lux (Day / Color) /F1.6~3.7
Electronic Shutter
:
NTSC:1/60~1/30,000, PAL:1/50~1/30,000
Lens Furnished
:
22x Auto Focus Zoom (3.9~85.8mm / F1.6~3.7)
Digital Zoom Ratio
:
Basic 16x (Total Zoom Ratio 352x),2x~16x variable
Zoom Speed
:
5 sec
Focus Mode
:
Auto / Manual / Push Auto
Iris Control
:
Auto / Manual
White Balance
:
Auto / Hue / Indoor / Outdoor / manual / Push Auto
Day / Night (ICR)
:
AE / Sensor / Day / Night
Gain Control
:
Auto / Manual
Back Light Comp.
:
On / Off
Pan / Tilt Control Angle
:
Pan: 360°, Tilt: 0°~90°
Pan / Tilt Speed Control
:
Manual: Pan 1°~150° / sec, Tilt: 1°~100° / sec, Auto: Pan 1°~300° / sec, Tilt: 1°~200° / sec
preset points
:
128 preset points
Sequence
:
6
Remote Control
:
RS-485
Protocol
:
YOKO / PELCO D&P / LG
On Screen Display
:
Set-up menu
Auto Turn Around
:
Yes
Alarm / Relay
:
6 / 1
Sync. System
:
Internal
Video Output
:
1 Vp-p / 75 Ohms
Power Supply
:
DC12V±10%
Power Consumption
:
DC: 2800mA max. / AC: 2400mA max.
Operating Temp.
:
-10° ~ 40°C
