YOKO : RYK 2G49VF3

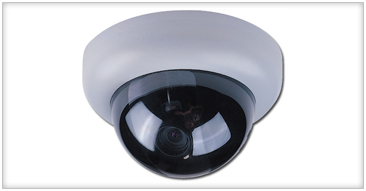

1/3" CL Space Dome Camera
Benefits
  • Sony Super HAD CCD sensor
  • Built-in Vari-Focal Lens
  • DC or DC/AC Dual voltage
Veri-focal Dome Cameras
Dome Cameras
Enlarge Image
Specifications
Image Device
:
1/3" Color Sony Super HAD
Picture Elements
:
NTSC:510x492, PAL:500x582
Resolution
:
380 TVL
Min. Illumintion
:
0.2 Lux / F 2.0
S/N Ratio
:
More than 48dB
Electronic Shutter
:
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
Flickerless Mode
:
On / Off (NTSC:1/100, PAL:1/120)
Gamma
:
0.45
Iris Control
:
DC Drive
Lens Furnished
:
VF3 model: Vari-Focal 3.7~12mm / F1.6~3.0, Wide: 71.6°x55.8°, Tele: 23.8°x17.9° (HxV)
VF9 model: Vari-Focal 9.0~22mm / F2.0~360, Wide:29.2°x21.7°, Tele: 13.0°x9.7° (HxV)
White Balance
:
Auto
Gain Control
:
High / Low
Back Light Comp.
:
On / Off
Sync. System
:
Internal
Video Output
:
1 Vp-p / 75 Ohms
Power Supply
:
DC12V±10% (option: DC12V/AC24V Dual)
Power Consumption
:
150mA max.
Operating Temp.
:
-10°C ~ 50°C

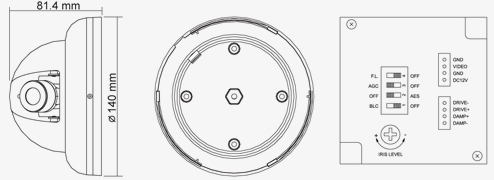

Dimensions
