Accessories.: PS01


PSTN Server
Benefits
This device is designed to work with the System Integration DVR (SI-DVR) to provide instant and mobile surveillance by using the PSTN fixed line. It will actively call out to the specified phone numbers (up to six) via the PSTN network whenever any motion is detected or any alarm is triggered. When the call is answered, the pre-defined voice recording for a certain event will be played to inform the recipient of the current event. Video auto-callback is also supported when the call is made to the GSM / GPRS mobile phone with our mobile surveillance software, EagleEyes, installed.

  • Instant event notification via your current PSTN fixed line without subscribing a new line
  • Video auto-callback supported via the GSM / GPRS mobile phone with the mobile surveillance software, Eagle Eyes, installed
  • Voice recording for six different events
  • Built-in watch dog

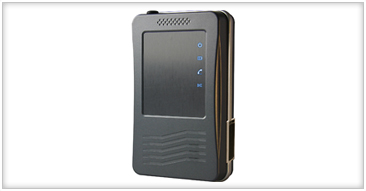

Accessories PS01
Enlarge Image
Specifications
RAM
:
1024 Byte
Flash Memory
:
64 KB
External I/O Port
:
RJ11 port x 2 BNC (video) x 1
Security
:
Password
Firmware Upgrade
:
YES
DCCS Support
:
YES
Call-Out Support
:
YES
Notified Via
:
PSTN fixed line
Watchdog
:
YES
Power Source
:
DC12V 250mA (max)
Battery Size
:
1240mAh
Operating Temperature
:
0°C ~ 35°C
Operating Humidity
:
<85%>
Dimensions (mm)
:
128(L) x 76(W) x 25(H)
Weight (g)
:
165
