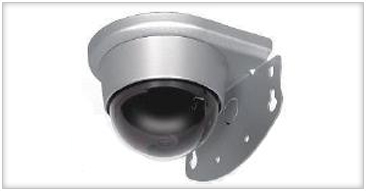

YOKO : RYK-2311/4

Benefits

Regular Dome Cameras

Enlarge Image

Ask for Product

Specifications

Image Device

1/3" Color Sony Super HAD

Picture Elements

NTSC:510x492, PAL:500x582

Resolution

420 TVL

Min. Illumination

0.2 Lux / F2.0

S/N Ratio

48db

Electronic Shutter

NTSC:1/60~1/100,000, PAL:1/50~1/110,000

Lens Furnished

Board Lens 3.6mm / F2.0)

Gamma

0.45

White Balance

Auto / Manual

Gain Control

Auto / Manual

Sync. System

Internal

Video Output

1 Vp-p / 75 (optional)

Power Supply

DC12V ± 10%

Power Consumption

117ma max.

Operating Temp.

-10°C ～50°C
