AVTECH : AVC 547

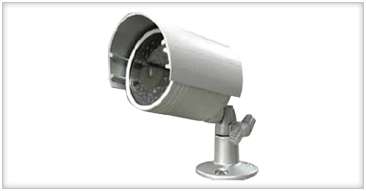

AVC 547 High Resolution 24 LEDs IR Camera
This HIGH RESOLUTION surveillance camera series is designed to suit versatile security demand. With the HIGH QUALITY PERFORMANCE and COMPETITIVE PRICE, it makes your security demand affordable.
Benefits
  • 1/3" HR Color CCD
  • High resolution of 500 TVL
  • Low light sensitivity of 0.6 Lux at F2.0
  • IR projection distance: over 15 meters with 24 IR LEDs
  • Meet IP67 international standards
Infra Red Cameras
Best Infra Red CamerasBest Infra Red Cameras
Enlarge Image
Specifications
Pick up Element
:
1/3" HR color CCD image sensor
Number of Pixel
:
771(H) x 492(V) / 753(H) x 582(V)
Resolution
:
500 TV lines
Min. Illumintion
:
0.6 Lux / F2.0
IR LED
:
24 units
Effective Range
:
Over 15 Meters
S/N Ratio
:
More than 48dB (AGC off)
Electronic Shutter
:
1/60 (1/50) to 1/100,000 sec.
Lens
:
3.6mm / F2.0
Lens Angle
:
92.6°
Iris Mode
:
AES
White Balance
:
ATW
IP Rating
:
IP 67
Video Output
:
1.0 Vp-p composite, 75Ω
Power Source (±10%)
:
DC12V
Current Consumption
:
90mA (IR off) ~ 330mA (IR on)
Dimension (mm)**
:
103.2(L) × 63(W) × 58(H)
