GANZ, CBC : ZC-BNT3039PHA


IR Bullet Cameras
The ZC-BT/BX Colour IR range of cameras comes complete with a 3.0-9.0mm auto iris high speed varifocal lens providing optimum performance in demanding lighting conditions. The lens and infrared leds provide optimum performance in demanding lighting conditions making the cameras suitable for around the clock surveillance. The cameras also have an automatic IR trigger on under low illumination and an automatic IR trigger off under normal lighting to allow effective IR illumination.
Dependant on model, an effectiverange of between 12-15m can be achieved. The compact and lightweight IR cameras include vadal-resistant versions, are water-resistant and have IP66 and IP55 rating, making them suitable for outdoor use.
Benefits
  • 1/3” IT CCD
  • Compact and light weight
  • Automatic Day & Night function
  • Over 12 meters effective range
  • Automatic IR trigger-on under low illumination
  • Automatic IR off under normal illumination
  • Water resistant
  • EFZA (external, focus, zoom adjustment) on BNX and BX models
  • True Day/Night (BN models)

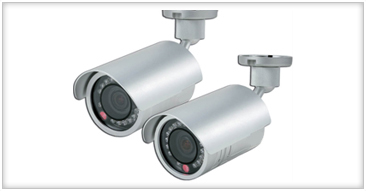

Infra-red Camera
Enlarge Image
Specifications
TV System
:
PAL
Focal Length
:
3.0 ~ 9mm
Image Sensor
:
1/3” IT CCD
Resolution
:
>480 TVL
Scanning System
:
2:1 Interlace
Scanning Frequency (H/V)
:
15.625 KHz (H) x 50.00Hz (V)
Minimum Illuminance
:
0 lux; IRs ON
Effective elements
:
752 (H) x 582 (V)
Video output
:
1.0 Vpp /75 Ohm
Day & Night
:
True
S/N ratio (AGC: off)
:
>50dB
Electric Shutter
:
1/50sec. (FL OFF)m 1/120sec (FL ON)
Gamma Characteristic
:
0.45
White Balance
:
ATW
Power Consumption :
DC 12V
:
6.5W
AC 24V
:
6.0W/430mA
IP Rating
:
IP66
IR LED
:
16 LED = 12m
Operating Temperature & Humidity
:
-10°C ~50°C, 85° RH max
Storage Temperature & Humidity
:
-20°C ~60°C, 95° RH max
External Dimensions
:
117(L)mm x 84 (D)mm (included sunshield)
Weight (approximate)
:
650g
Adjustment volume
:
DC Iris Adjustment
Switches
:
Dip Switch
Angle of view
:
115.4° ~ 39.8°
90.3° ~ 31.9°
90.3° ~ 31.9°
